Click to enlarge image(s)

In Stock

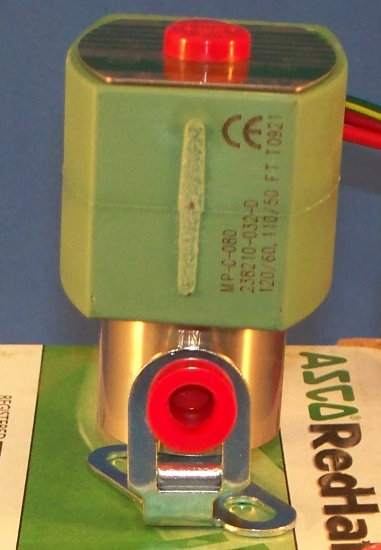

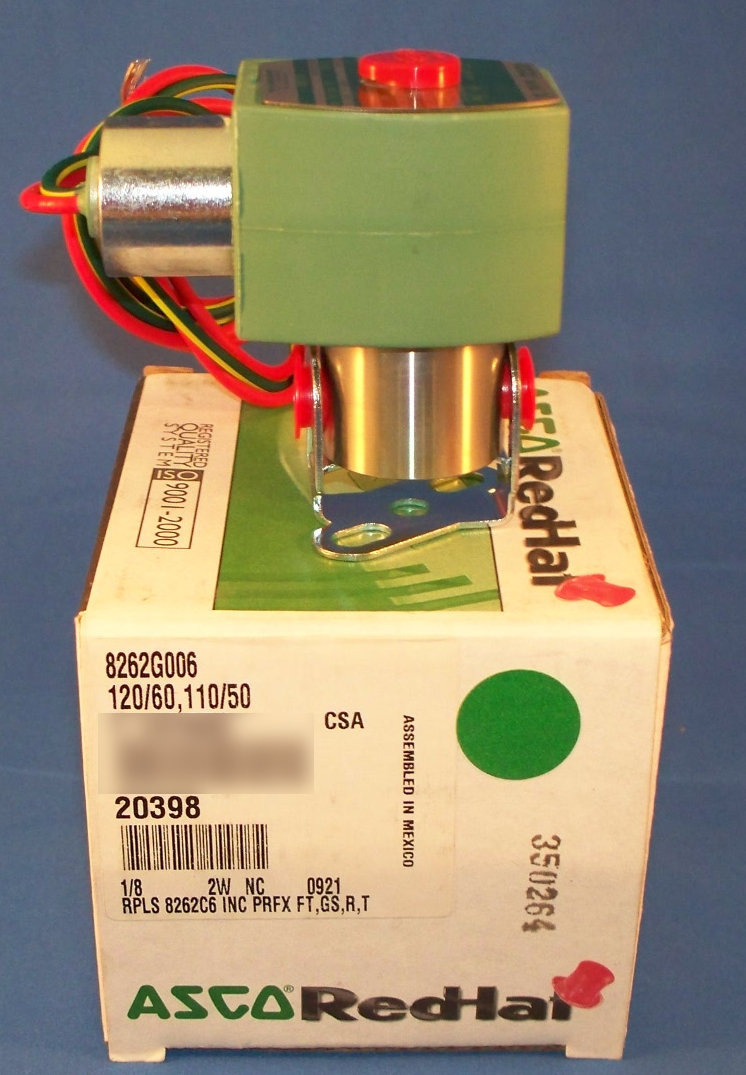

ASCO 8262G006, 120/60 2-Way Normally Closed Solenoid Valve 1/8" NPTF, Stainless Steel body, 120 VAC 60Hz coil Watertight, 0-180 PSI OPD for Water, 6.1 Watts

Important: Valves may be mounted in any position.

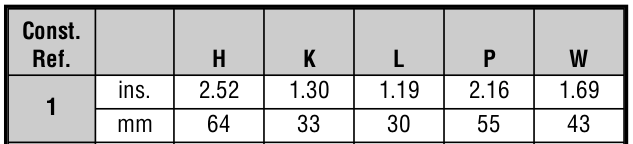

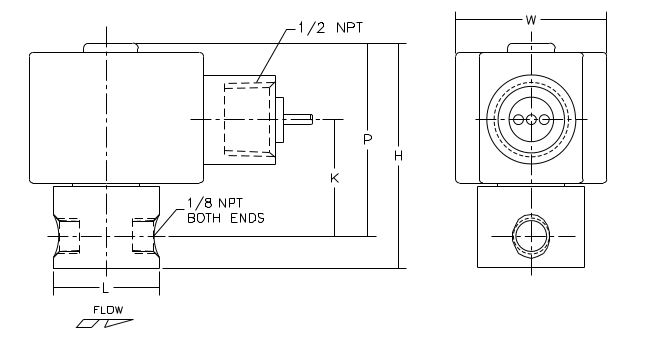

Construction Reference for 8262G006AC

Specifications
Operation	2-Way
Flow	Normally Closed (N/C)
Body	303/304 Stainless Steel
Voltage	120VAC 60Hz / 110 VAC 50 Hz
Solenoid Enclosure	Watertight, Types 1, 2, 3, 3S, 4, and 4X
Coil Watts/Class of Insulation	6.1/F
Coil Part Number	238210-032-D
Max. Operating Pressure Differential (PSI)	155 Air-Inert Gas, 180 Water, 140 Lt.Oil # 300 SSU
Repair Kit	302016
